Setting up MSMQ

EIQ RTIS uses messaging systems to receive updates from data sources. Microsoft Message Queuing (MSMQ) and Java Message Server (JMS) are two of the popular messaging systems. This document describes how to configure MSMQ to use EIQ RTIS’ real-time update feature. It assumes that MSMQ is installed in a domain environment; NOT in workgroup mode.



If MSMQ is installed in workgroup mode but needs to be configured in a domain environment, first, promote the computer to the domain. Then, uninstall and reinstall message queuing using the default settings.



Message queuing must be installed on a Windows 2000/XP domain controller first. The setup program automatically attempts to locate the Message Queuing server when you begin installing on additional computers.



In a multiple server setup, MSMQ must be installed on each of the client computers, as shown in Figure 1, when using triggers to monitor data source changes.



Figure 1: The MSMQ Setup for a Multiple Server Installation using the Trigger Message Driver (Trigger DLL) for updates.



Note: Data source triggers are NOT the preferred method to capture changed data in the real-time update process because they require installation on data source systems and impose an operational overhead. EIQ RTIS is the preferred method to read transaction, change, and redo logs.



If the multiple server installation uses EIQ RTIS, MSMQ must also be installed on the computer running EIQ RTIS as shown in Figure 2.

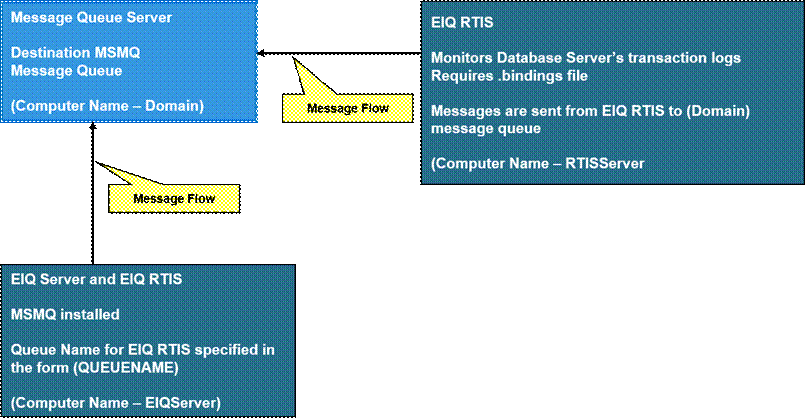

Figure 2: The MSMQ Setup for a Multiple Server Installation using EIQ RTIS for updates.



In this case, EIQ RTIS replaces the database triggers and the trigger message driver.



For this MSMQ installation to work correctly, security properties must be setup for the domain message queue. These are described in the next section.

Setup Instructions for MSMQ

MSMQ message queues must be setup in Domain mode on the computer where the data source is running (SQL Server, Oracle, etc.) and on the destination queue computer where EIQ RTIS is running. This can be the same computer.



Setup a users group, for example MSMQ Users, and the users and/or computers that require access to the message queue. This should include the data source server; the computer that sends messages to the message queue. It should also include the computer and/or users that will read the messages from the queue.



Follow these steps to configure the message queue for the destination queue server (domain controller).



1. Open the “Computer Management” snap-in.
2. Expand the “Services and Applications” node.
3. Expand the “Message Queuing” node.
4. Right-click on the “Message Queuing” node and select ‘Properties’.
5. Select the ‘Security’ tab and add the database server computer to 'Group or user names:' by selecting ‘Add’.
6. Right-click on the Public Queues sub node and select ‘New->Public Queue’.
7. Enter the Queue name. It is the same as the value of the QueueParam parameter specified in the database trigger.
8. Right-click on the queue just created and select ‘Properties’.
9. Change the 'Type ID:' in the General tab to {250916E2-8330-11d4-B8ED-00B0D054CDBC}.
10. Select the ‘Security’ tab and add the MSMQ Users group created above.



For more information on creating public queues, see MSMQ Public Queues.



MSMQ Security Properties

Using the “Computer Management” snap-in on the domain computer (destination message queue), following the configuration in Figure 1, you must add the DBServer and EIQServer in the Message Queuing ‘Security’ tab. From the “Computer Management” snap-in, right click on "Message Queuing" and select ‘Properties’ from the context menu as shown in Figure 3.

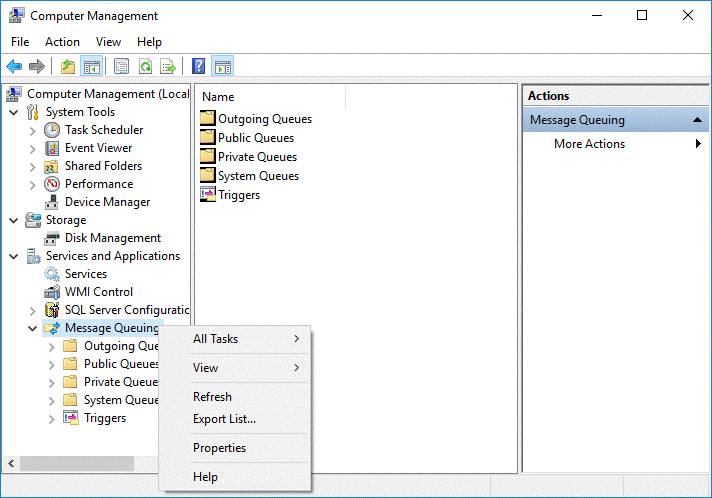

Figure 3: The Message Queuing object in the Computer Management Snap-in



From the ‘Security’ tab in the “Message Queuing Properties” dialog, click ‘Add...’, select both the DBServer and EIQServer computers, and click ‘Add’ to insert into the list. Click ‘OK’ to add them to the MSMQ Security properties.



Using MSMQ in Workgroup Mode

The majority of setups use EIQ RTIS with MSMQ installed in a domain environment. When MSMQ is in workgroup mode, only private queues are available. This setup option can be used if EIQ Server, EIQ RTIS, and the database server are on the same machine.



Create a registry key under "HKEY_LOCAL_MACHINE\SOFTWARE\MICROSOFT\MSMQ\TRIGGERS\" to enable private queues. You need to create a new "String value" with the following entry:



      ComputerName           REG_SZ         .\private$\



The '.' (dot) means local computer and 'private$' directs the message to the private queue.



Notice the name. It has an uppercase C and N.



For more information on creating private queues, see MSMQ Private Queues.
