EIQ RTI Tool Transformations
Version 7.11

RTI Transformations.. 1

General Flow of Transformations. 1

Table Transformations Configuration Wizard. 8

Combine. 8

StandardID.. 10

DateToKey. 11

CondLookup. 12

Masking. 13

TableLookup. 17

TypeConditionalOutput 19

CombineDateTime. 21

Frequently Encountered Errors. 22

Issue 1. 22

Issue 2. 22

Other Issues. 23

Index Processing Order 24

Appendix A: RTI Transforms List 27



RTI Transformations

One of the many benefits of the RTI Tool is its ability to transform the data at the EIQ Index level rather than transforming the actual source data. Column level transforms can be applied in both Profile and RTI mode while Table transforms can only be applied in RTI mode. In this documentation, all transforms will be applied while in RTI mode.

General Flow of Transformations

Transformations created at the column level will apply directly to that column and replace the value in the field. Transformations created at the table level may need a derived column to output the transformation to. Typically, table transformations do not replace the data source values and the input can be from virtual and non-virtual keys. The following demonstrations use the ‘PM’ database.

Before a table transform is applied, create a derived column for the transformation output.

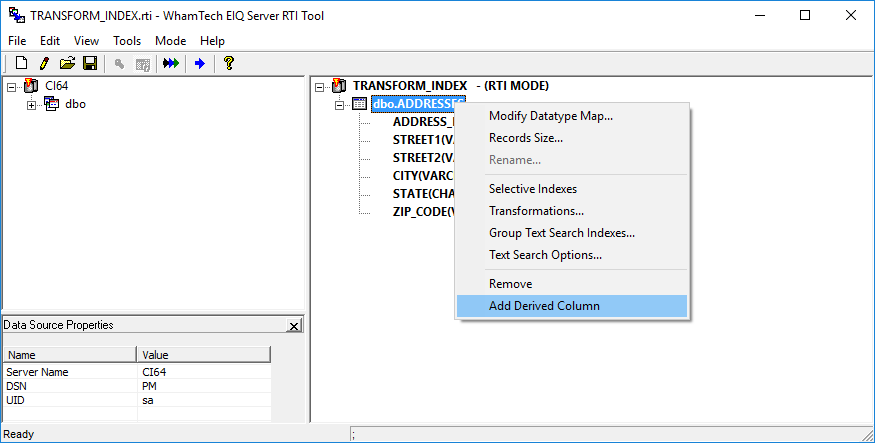

·         Right-click the table node and select ‘Add Derived Column’.

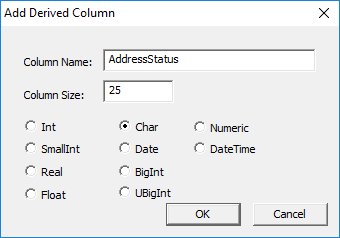

·         Create a derived column called ‘AddressStatus’ and set the data type as CHAR. Click ‘OK’.

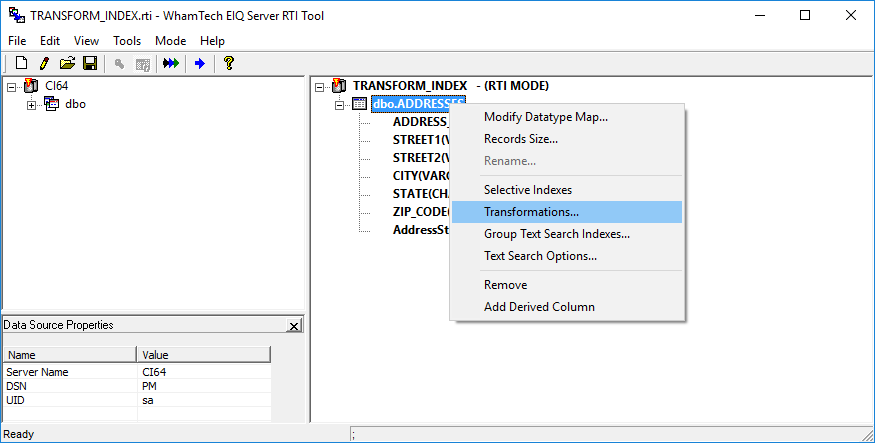

·         Right-click the table node and select ‘Transformations…’

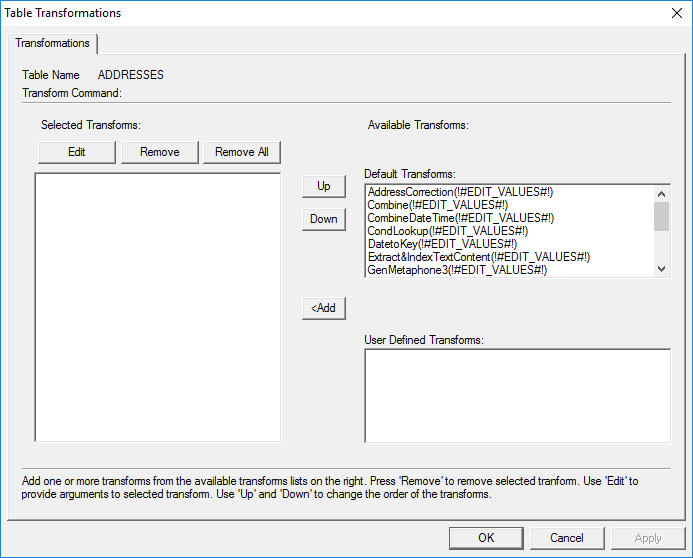

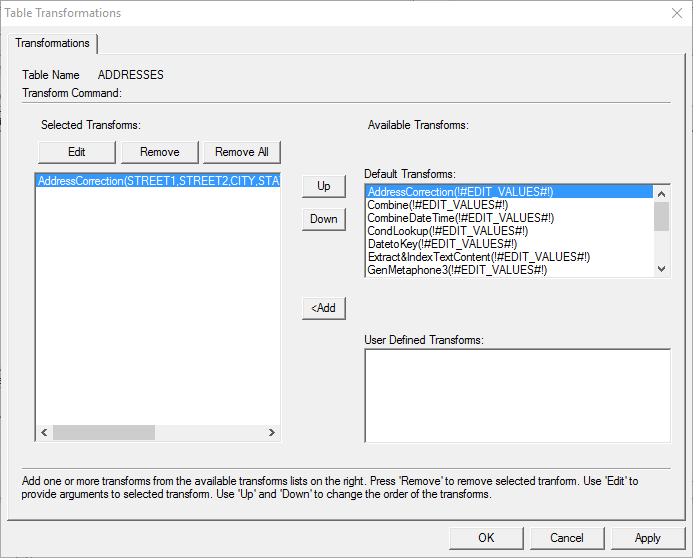

This opens the ‘Table Transformations’ window. The transforms found here are different from the column transforms. The process for adding a transform is exactly the same.

·         Select the transform ‘AddressCorrection(!#EDIT_VALUES#!)’ from the list of default transforms.

·         Either double-click the transform or click ‘<Add’ to move it into the ‘Selected Transforms’ list.

·         Specify the parameters of the transform by double-clicking it in the ‘Selected Transforms’ box or by selecting it and clicking ‘Edit’.

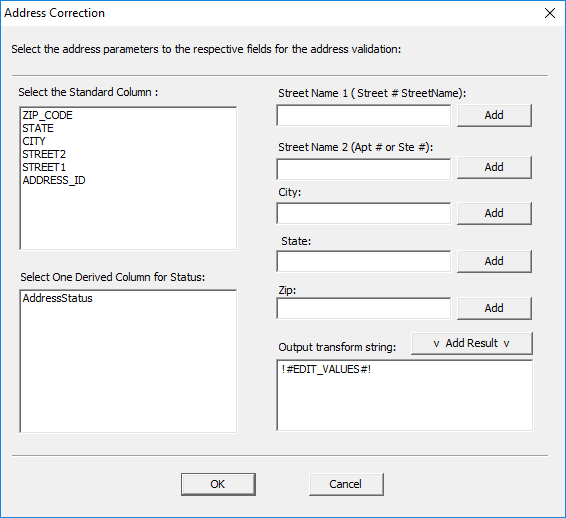

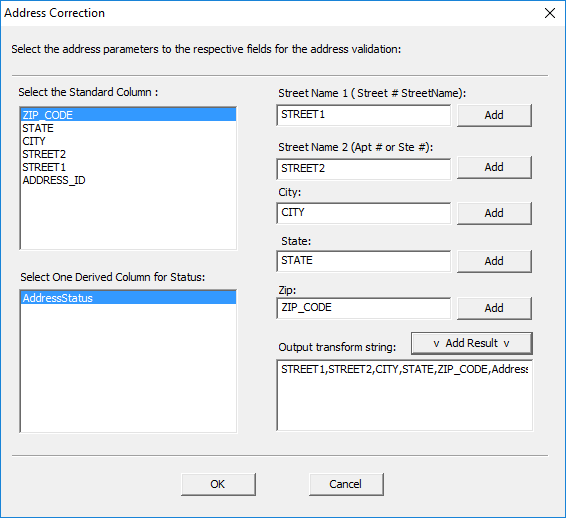

This opens the ‘Address Correction’ transform window.



The following standard columns need to be added to their proper spots for the Address Correction transform to work as intended. Select the standard column by clicking it and then click ‘Add’ next to the field it needs to populate.

·         Add ‘STREET1’ to the ‘Street Name 1’ field.

·         Add ‘STREET2’ to the ‘Street Name 2’ field.

·         Add ‘CITY’ to the ‘City’ field.

·         Add ‘STATE’ to the ‘State’ field.

·         Add ‘ZIP_CODE’ to the ‘Zip’ field.

Select the derived column to output the transform.

·         Click on ‘AddressStatus’ to select it as the output.

·         Click ‘Add Result‘ to create the output transformation string and apply it to the table.

·         Click ‘OK’

The defined ‘AddressCorrection’ transform now appears in the Table Transformation window.

·         Click ‘Apply’ to apply the transform and then click ‘OK’.

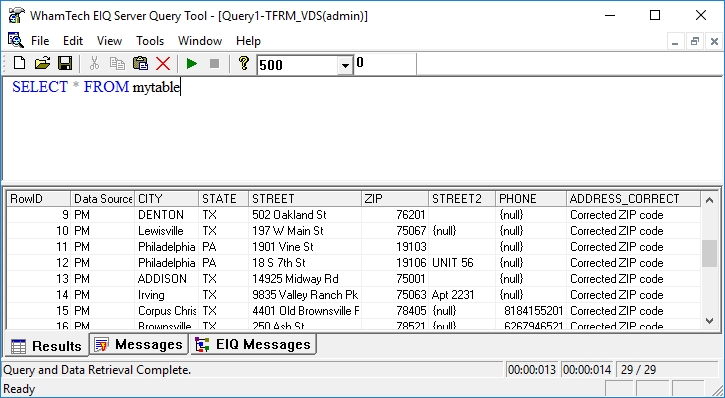

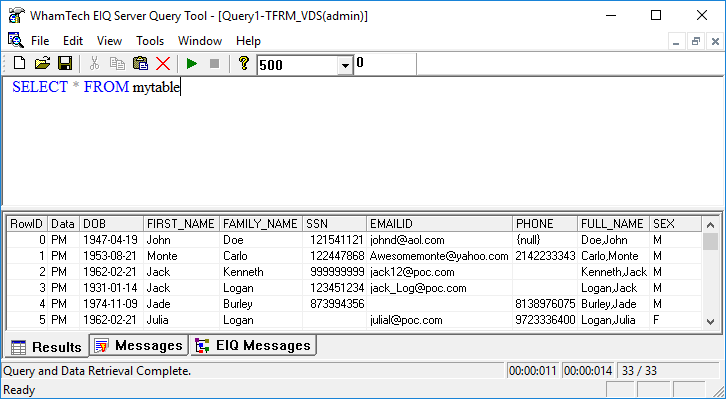

Derived columns are seen while querying in either the SuperSchema or native schema mode. In native mode, the column appears as ‘ADDRESSSTATUS’. With a SuperSchema mapping, the column appears as the mapped metadata dictionary column. The following example set up a VDS and performed a SuperSchema mapping with a derived column called ‘ADDRESS_CORRECT’. The ‘ADDRESS_CORRECT’ transform fixed some of the zip codes in the data at the EIQ Index level and discovered that some of the street names in the data couldn’t be found.



Transformations do not have a hierarchy, meaning specific transforms do not take priority over other transforms. Transforms are applied in the order that they are defined. Additional transforms added to this table are added after the ‘AddressCorrection’ transform. ‘AddressCorrection’ applies to the table first followed by the next transform in the list. The transform order can be changed by selecting a transform and clicking ‘Up’ or ‘Down’ to move it.

There is an exception to the order transforms are applied. Data Source columns apply any column transforms first and then table transforms. Derived columns always apply the table transform first because it is populated or initialized by a table transform. Derived columns also get the benefits of base column transforms plus any transformations applied to the derived column itself.



Table Transformations Configuration Wizard

The table transformation configuration wizard has many different screens and functionalities based on the transformation being created and applied. This next section goes through some of the various table transformations and how to properly configure them.

Combine

Combine two or more columns into one single column. For this example, use the CONTACTS table from the PM database.

·         First, create a derived column for the output.

·         Name the column ‘Fullname’ and select the CHAR data type.

·         Click ‘OK’.

Now, right-click the table node and select ‘Transformations…’. In the ‘Table Transformations’ window, select the default transform ‘Combine(!#EDIT_VALUES#!)’.

·         Double-click the transform or click ‘<Add’ to select it.

·         Once selected, double-click it again or click ‘Edit’ to specify the parameters of the transform.

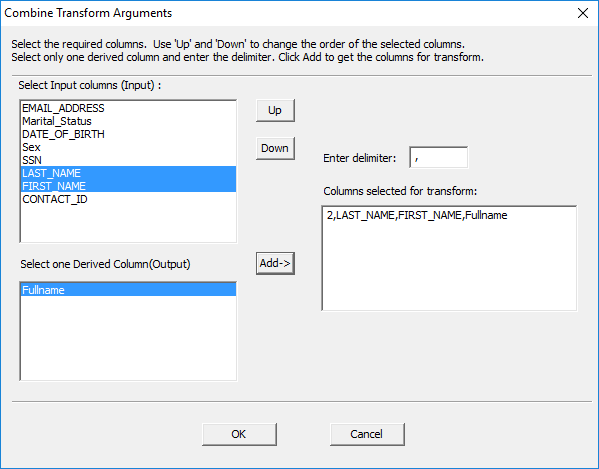

This opens the Combine Transform Arguments window.

This transform requires at least one input column. These input columns must be columns from the data source. This example uses two columns to create the full name of a person in one column. Select LAST_NAME and FIRST_NAME as the input columns. Make sure to have the input columns sorted into the order they need to appear. If LAST_NAME is above FIRST_NAME, the last name will appear before the first name in the transform. Use ‘Up’ and ‘Down’ to change the order of the input columns.

The transform also requires one output column. The output column will always be a derived column. Select the ‘Fullname’ derived column you created before beginning the transformation.

Lastly, specify a delimiter. The delimiter is a user-specified character that will separate the two columns. For example, if the user wants the data to appear as ‘Burley, Jade’, they would use a comma as the delimiter with LAST_NAME above FIRST_NAME in the input column box. If the user wants the data to appear as ‘Jade Burley’, they would use a ‘space’ as the delimiter with FIRST_NAME above LAST_NAME.

·         Once everything is specified, click ‘Add->’ to create the transform string and click ‘OK’.

·         Click ‘Apply’ in the ‘Table Transformation’ window to apply the transform.

·         Click ‘OK’.

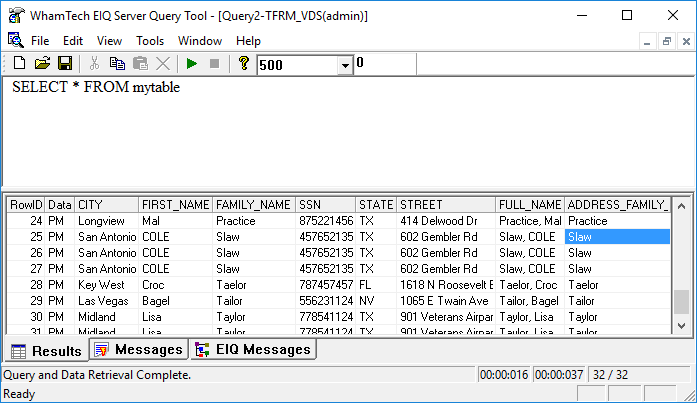

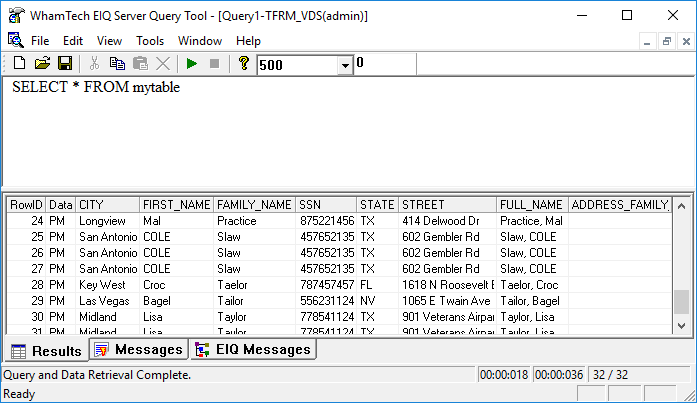

We mapped the derived column using SuperSchema under the metadata dictionary column name ‘FULL_NAME’.



When combining columns, it is okay to combine two or more columns that have different data types. The output will always be a string. The systems convert non-string data types to string during concatenation.

StandardID

This transform partitions the data based on the specified window. The window can contain multiple columns. Use the ADDRESSES table in the PM database for this transform.

·         Create a derived column called ‘StandardID’ with the numeric data type.

·         Right-click the table node and select ‘Transformations…’

·         Select the ‘StandardID(!#EDIT_VALUES#!)’ transform from the default transform box.

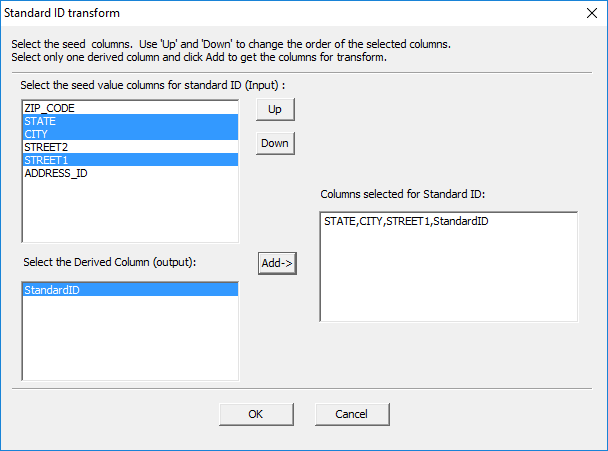

·         Edit the parameters of the transform.



For this transform, the input columns must be data source columns. The output column will store the generated ID. The output column must have a numeric data type.


DateToKey

This transform converts the input date/datetime field to the numeric date using the yyyymmdd format. Use the CONTACTS table from the PM database for this example.

·         Create a derived column called ‘DOBToKey’ with an ‘INT’ data type.

·         Right-click the table node and select ‘Transformations…’

·         Select the default transform ‘DateToKey(!#EDIT_VALUES#!)’.

·         Once in the ‘Selected Transforms’ box, double-click the transform to specify the parameters.

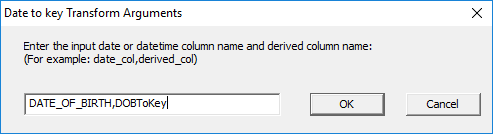

This opens the ‘Date to key Transform Arguments’ window.

·         Enter the name of the Date of Birth column as it appears in the table.

·         Enter the name of the derived column.

·         Click ‘OK’

·         Click ‘Apply’ and then ‘OK’ again.

This input column must be a DATE data type within the map. Make sure that the output column has an ‘INT’ data type. Other numeric data types return a 0, making the connection string useless.



CondLookup

This transform replaces an ID or code number with a description from a file. Use the ADDRESSES table from the PM database for this example.

The Conditional Lookup transform does not support derived column output. Therefore, no derived column needs to be created.

·         Right-click the table node and select ‘Transformations…’

·         Select ‘CondLookup(!#EDIT_VALUES#!)’ from the default transforms list.

·         Double-click the selected transform to edit the parameters.

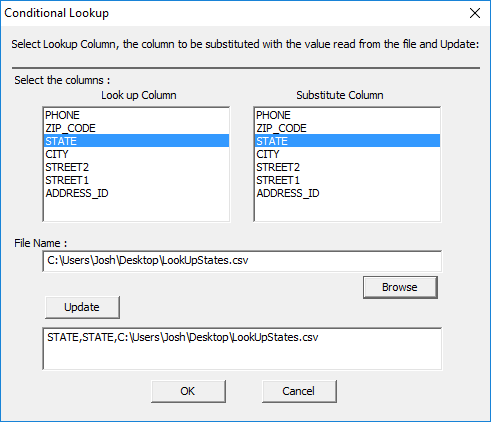

This opens the Conditional Lookup window.

·         Select the desired Look up column and Substitute column.

·         Find the path to the look up file.

·         Click ‘Update’ to select the string.

·         Click ‘OK’

·         Click ‘Apply’ then press ‘OK’ again.

The look up column is the column that will be looked up under the condition. The substitute column is the column that will be replaced with the new description. It cannot be a derived column. The File Name will show the path to the look up file.



Masking

These transforms will apply a mask to the data that hides the actual values. Masks can be simple changes to hide information, or they can be much more complex.

The first masking transform is the Offset Method. Through this transform, all dates are replaced with a new date generated using a random offset for each value. For example, when analyzing patient data, if the original reference date is April 1, 2008 and the date of death is May 1, 2008, a random offset will be generated. If this random offset is 91 days, then the new dates after applying the offset method transform would be July 1, 2008 and July 31, 2008. The results can be stored in derived columns or replace the data source attributes. Select the output columns and select ‘output to Derived Columns’ to save the result to a derived column.

Use the Policies table from the PM database for this example.

·         Create two derived columns: ‘OffsetMethod’ and ‘OffsetMethod2’.

·         Make sure they have the same data type as the date column being transformed.

·         Right-click the table node and select ‘Transformations…’

·         Select ‘Masking(!#EDIT_VALUES#!)’ from the default transforms list.

·         Double-click the selected transform to edit the parameters.

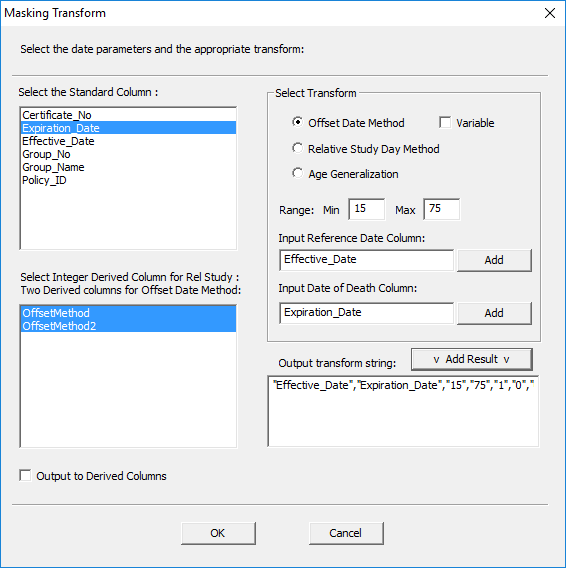

This opens the Masking Transform window.


·         Make sure ‘Offset Date Method’ is selected.

·         Specify the range for the offset date.

·         Select the input column for the reference date and click ‘Add’.

·         Select the input column for the end date and click ‘Add’.

·         Highlight the two derived columns where the output will go.

·         Click ‘Add Result’ to generate the transform string.

Apply the transform and click ‘OK’ to finish.

The next masking transform is the Relative Study Day Method. This transform calculates the number of days relative to a reference date. All dates are removed and then results will be stored in a derived column as an integer. Using patient data as an example, if the first day of treatment is January 1, 2008 and the date of death is May 1, 2008, the date of death will be expressed as 120 study days.

Continue using the Policies table for this example.

·         Create a derived column with the INT data type called ‘RelativeStudy’.

·         Right-click the table node and select ‘Transformations…’

·         Select ‘Masking(!#EDIT_VALUES#!)’ from the default transforms list.

·         Double-click the selected transform to edit the parameters.

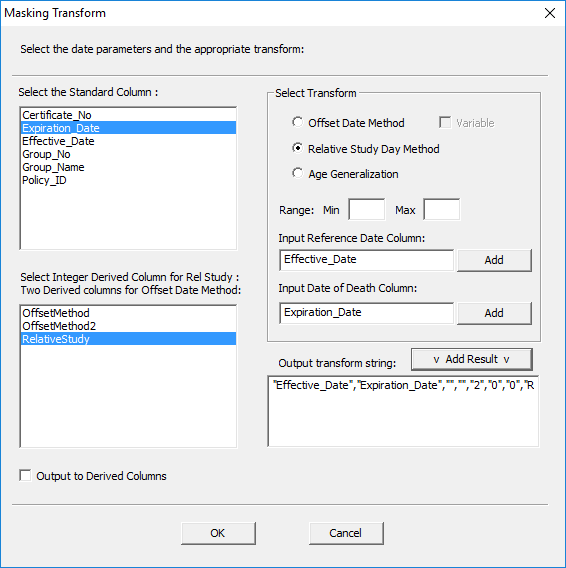

In the Masking Transform window:

·         Make sure ‘Relative Study Day Method’ is selected.

·         There is no need to specify a range.

·         Select the input column for the reference date and click ‘Add’.

·         Select the input column for the end date and click ‘Add’.

·         Select the ‘RelativeStudy’ output column created earlier.

·         Click ‘Add Result’ to generate the transform string.

Apply the transform and click ‘OK’ to finish.

The final masking transform is Age Generalization. This masking transform will use the reference date to generalize the age.

Again, use the Policies table for this example.

·         Create a derived column called ‘AgeGeneralization’.

·         Right-click the table node and select ‘Transformations…’

·         Select ‘Masking(!#EDIT_VALUES#!)’ from the default transforms list.

·         Double-click the selected transform to edit the parameters.

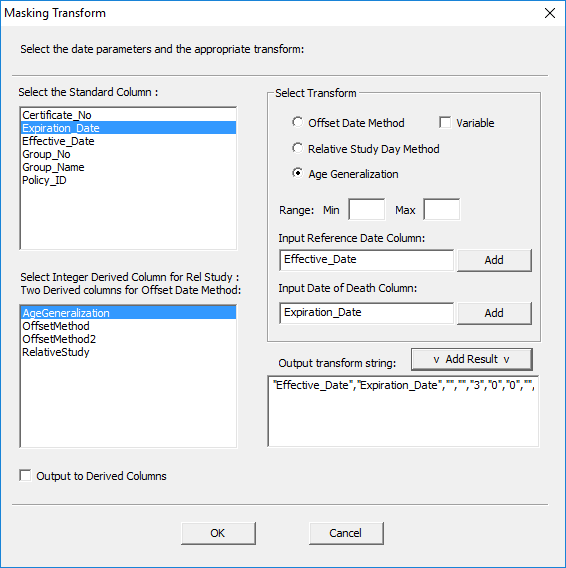

In the Masking Transform window:

·         Make sure the ‘Age Generalization’ radio button is selected.

·         There is no need to specify a range.

·         Select the input column for the reference date and click ‘Add’.

·         Select the input column for the end date and click ‘Add’.

·         Select the ‘AgeGeneralization’ output column created earlier.

·         Click ‘Add Result’ to generate the transform string.

Apply the transform and click ‘OK’ to finish.



TableLookup

This transform looks up values from one table to be substituted into another table. Use the CONTACTS and ADDRESSES tables for this example.

·         Create a derived column called ‘FullName’ in the ADDRESSES table.

·         Right-click the table node and select ‘Transformations…’

·         Select the ‘TableLookup(!#EDIT_VALUES#!)’

·         Double-click the selected transform to specify the parameters.

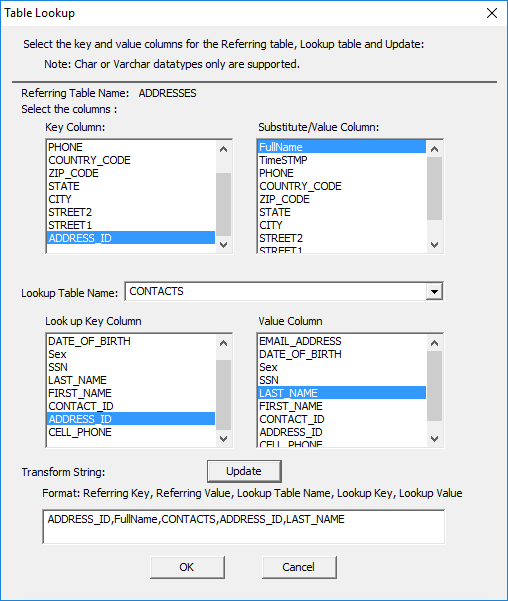

This opens the Table Lookup window.

·         Specify the parameters of the table lookup.

·         Click ‘Update’ to generate the transform string.

·         Click ‘OK’

·         Click ‘Apply’ and click ‘OK’ again to finish.

The lookup table and columns must be indexed table and columns. Only the Substitute column can be a derived column.



TypeConditionalOutput

This transform outputs data to a derived column when a specified condition is true. Use the ADDRESSES column from the PM database for this example.

·         Create a derived column called ‘NonTX’ with a CHAR or VARCHAR data type.

·         Right-click the table node and select ‘Transformations…’

·         Select the ‘TypeConditionalOutput(!#EDIT_VALUES#!)’ default transform.

·         Double-click the selected transform to edit the parameters.

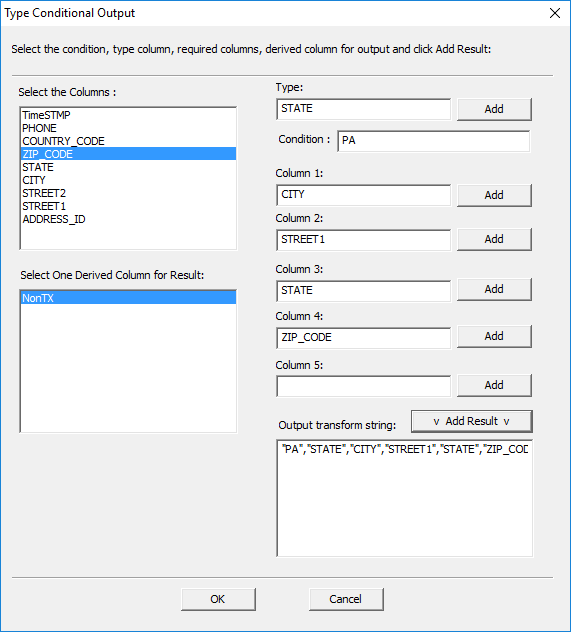

This opens the Type Conditional Output window.


The ‘Type’ field is the specific column where the condition is being applied. The ‘Condition’ field is the value the transform is looking for. Columns 1-5 are values returned with any results where the condition is met. Those values are returned like a combine function. The output column, ‘NonTX’, will store all the values where the condition is true. In this case, the transform will look for any row where the state is ‘Pennsylvania’ and store that information, along with the specified columns, in the ‘NonTX’ derived output column.

All the parameters are optional except for the output column. When the type and condition are not provided, this transform will function as a combine supporting up to five attributes.

·         Specify the parameters.

·         Click ‘Add Result’ to generate the output transform string.

·         Click ‘OK’

·         Click ‘Apply’ and click ‘OK’ again to finish.



CombineDateTime

This transform will combine date and time columns in a specified format. Use the Appointments table in the PM database for this example.

·         Create a derived column called ‘CombineDTTM’ with the DATETIME data type.

·         Right-click the table node and select ‘Transformations…’

·         Select the ‘CombineDateTime(!#EDIT_VALUES#!)’ default transform.

·         Double-click the selected transform to edit the parameters.

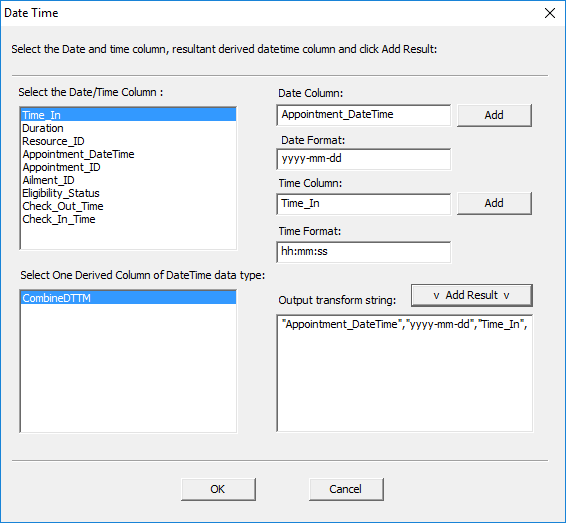

This opens the Date Time window.

·         Specify the parameters.

·         Click ‘Add Result’ to generate the output transform string.

·         Click ‘OK’

·         Click ‘Apply’ and click ‘OK’ again.

The derived column must have the DATETIME data type to get the desired effect.



Frequently Encountered Errors

Now that the transform configuration wizard has been demonstrated in detail, it is important to demonstrate frequently encountered errors in the RTI Tool and how to fix them.

Issue 1

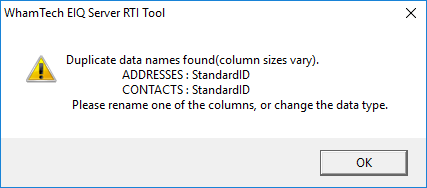

You tried to build the index and received this error:


This means that there are two derived columns in the map with the same name, but different data types.

·         ADDRESSES.StandardID (NUMERIC)

·         CONTACTS.StandardID (INT)

There are two different options to resolve this issue.

·         Rename one of the columns to something else. (This is the correct solution.)

·         Change the data type to match across all the attributes. (This will cause the next issue.)



Issue 2

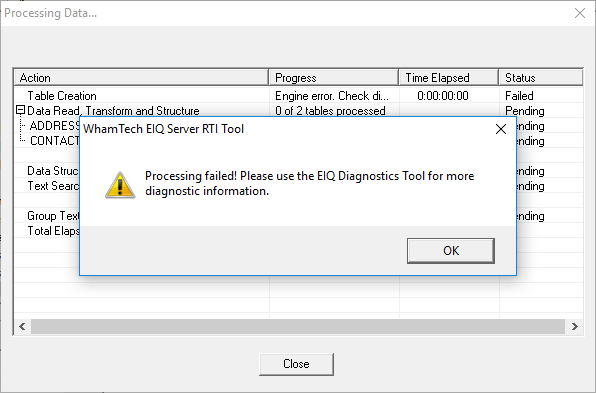

You’ve completed your map and are ready to build the index. On processing, you receive the error below:

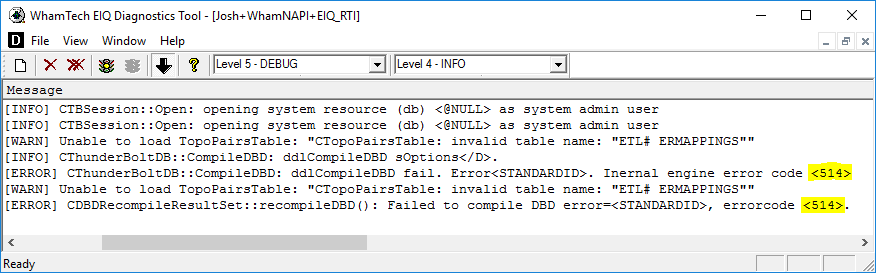

An examination of the Diagnostics tool reveals:

<514> Global keys are not allowed in GROWable tables:%.64s

This problem is fixed by changing the name of one of the duplicate derived columns.





Other Issues

<514> Global keys are not allowed in GROWable tables:%.64s

A column with the same name was added to data source table where the derived column is defined. This adds the ds column to the index and creates a duplicate of the derived column. Both attributes look like derived columns in the index

Solution: Rename or remove the derived columns.



<172> Error opening dbd file:%s
The DBD file for the index is open somewhere.
Solution: close all connection to the DBD file

<231> Zero length field%.25s
A
common error with the numeric data type.

[Error] Syntax Error: Unrecognized token [Records] near [, Records CHAR] for SQL…

A reserved word (Records) was used in a derived column name. For more information on reserved words, see Appendix D of the EIQ Server RTI Tool help.

Solution: Rename the column.



Index Processing Order

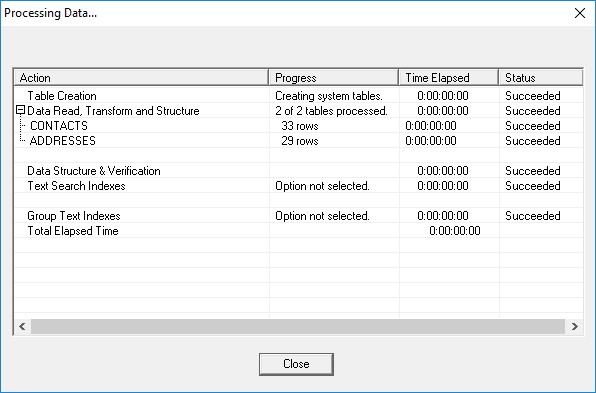

Some errors can be caused by processing issues when building the indexes.

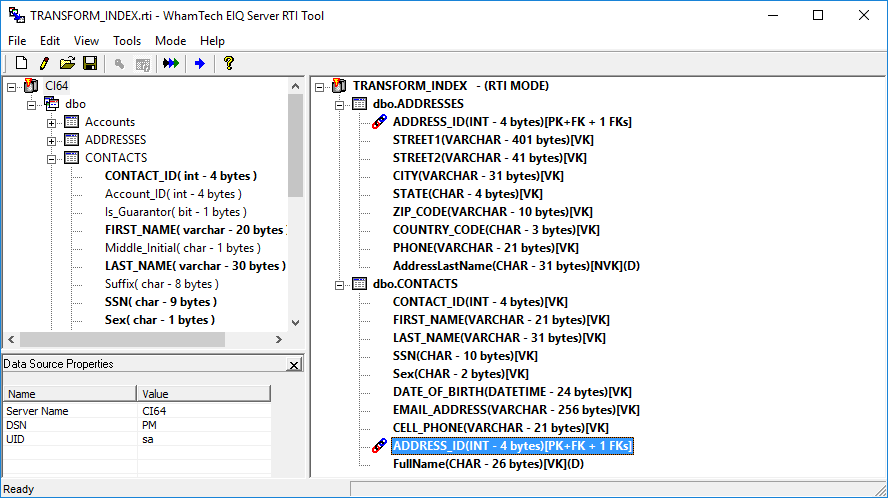

Here, there are two table transforms. In the CONTACTS table, the Combine transform creates a full name from FIRST_NAME and LAST_NAME. In the ADDRESSES table, a Table Lookup on the CONTACTS column for the last name is output to a derived column.




A query on this index presents an issue.





The table transform that creates the full name is working as intended, but the table transform preforming the lookup is not. This is because there is an issue with how the two tables are communicating. The two tables need to have the proper relationships set up through Primary Keys and Foreign Keys and the ID columns need to have the correct data type. If the tables aren’t connected properly, transforms that go between tables will fail. The other issue is that the ID columns have the ‘INT’ data type. ID columns need to be CHAR in order for this to work. After setting up the proper relationship and changing the data types, the transform will go through.



Appendix A: RTI Transforms List



ID

Function Name

Type

Description

Example/Use-Case

1

Combine

Table

Combine multiple columns into one.

Ex. Fullname = Lastname + Firstname

2

StandardID

Table

Partition rows over the specified window. Window specification can be of any data type. The same value is given to each partition



3

DatetoKey

Table

Converts date to their numeric representation. Accepts date input and returns integer



4

Masking

Table

3 methods available



Relative Study: Replaces date with day diff between the start and end of event.



Offset Date method: All dates are replaced with a new date generated using a random offset for each record.



Age Generalization: This masking transform will use the reference date to generalize the age



Note: Date of birth (event start date) and Date of death (event end date ) are always required, regardless of the method.

Ex. Event Start Date: 1/1/2010, enddate: 2/1/2010, offset 30



Relative Study: 31



Offset method:

Start: 1/31/2010

end =3/3/2010

5

TableLookup

Table

Look up data from another table within the data source (referenced table must be indexed). Can replace existing column or add a new column (Derived Column)



6

RegEx

Table

Matches a pattern in an input string. Can return the status of the match using the status column as well as the match value to a derived column.

Ex.

Name: O’Toole

ReqEx: ^[a-zA-Z]

Status:no match

Value: “”



7

GenMetaphone3

Table

Creates the sound representation of a word.

Ex: James

Result: Jams

8

AddressCorrection

Table

Accepts Address information from user in sub parts to correct and standardize the address. Returns a status column identifying the works done. Applies to U.S Address only and requires a custom dll file, not included in out of the box installation

Ex. 12001 N Central Expy, Fort Worth, TX, 75243

Corrected to:

12001 N Central Expy, Dallas, TX, 75243.

This is applicable to U.S. address only

9

NameCorrection

Table

This is a Date correction, not a Name as the transformation name implies. Accepts 2 input columns and an output column.

Regex expression must match Name column. Accepting the default regex then input must be this format: Jan 12 2010.

10

TypeConditionalOutput

Table

Conditionally checks the value of a column and returns the specified attributes when matched.



11

CombineDateTime

Table

Combines date and time attributes to a datetime column. The format string is the format of the input not output.





·         Column level transformation is two part

·         Part 1 requires converting the attribute data type to a data type acceptable for transformation

·         Part 2 is the actual transformation to be applied. The available transformation(s) is/are specific to the data type

·         The column been transformed is the input string

12

Isnull

Column

Replaces null values with the specified value. Must configure the replacement value



13

Lowercase()

Column

Converts attribute data to lower case string.

e.g. James = james

14

Uppercase()

Column

Converts attribute data to upper case string.

e.g. James = JAMES

15

Trim()

Column

Removes leading and trailing blanks

 Input =  hello world

Output = hello world

16

Substitiute(searchstring, replacement)

Column

Search a value and replace it with a new value. Replaces all occurrences of a search string with a new value.

Substittute(day, Yay)

Before: Today is a WednesDay

After: ToYay is a Wednesday.

It performs a case sensitive [1] search



17

Lookup

Column

Lookup data from a file. Conditional File Lookup allows you to lookup based on another attribute.

Both replaces the selected attribute with the result.

Works for base column but not derived.

File Format: Expect two columns where the first is the matching key and the second is the return value

18

Reverse()

Column

Reverse the order of the attribute data

e.g. eman

result: name

19

FormatSSN()

Column

Standardize the SSN attribute

Standard: 123-45-6789

20

ToDate(format string)

Column

Formats the attribute data to standard EIQ date format. Format string is the format of the input data not output. Input can be both date and string

Issues: invalid values returned for dates not matching specified format

21

ToDateTime(format string)

Column

Formats the attribute data per a specified date and time format

Ex. Yyyy-mm-dd hh:nn:ss.ttt

Default value provided for non-matching part of the format specified.

For e.g. 12-01-2001 12|12|12

Format: yyyy-mm-dd hh|nn|ss

Outcome: 1753-01-01 12:12:12

22

FormatPhone()

Column

Standardize the phone number

(999)-999-9999

23

Extractbetween(startstring, endstring)

Column

Extract the values between start and end string. It is case sensitive. It gets the value between the first matching pairs.



24

Extract&IndexTextContent(filepath.xml)

Table

Extract elements from blob based on the defined input file.

HL7 Parser



[1] Column level transformation on derived column is not supported at this time.

[2] Column level transformation are type bound.



Copyright © 2019 , WhamTech, Inc.  All rights reserved. This document is provided for information purposes only and the contents hereof are subject to change without notice. Names may be trademarks of their respective owners.
